034 Motorsport - High Pressure Fuel Pump & Vacuum Pump Upgrade Kit - Audi B9 A4/A5 2.0 TFSI - 034-106-6062.

034 Motorsport - High Pressure Fuel Pump & Vacuum Pump Upgrade Kit - Audi B9 A4/A5 2.0 TFSI - 034-106-6062.

The 034Motorsport High Pressure Fuel Pump & Vacuum Pump Upgrade Kit for Volkswagen and Audi EA888 Gen 3 engines provides everything you need to get your car up to speed with higher fuelling capacity for ethanol, pump gas, and turbo upgrades!

Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles from the factory feature an inadequately performing High-Pressure Fuel Pump that does not support the demands of tunes that require more fuel flow. Additionally, standard replacement upgraded High-Pressure Fuel Pumps, such as our MQB upgrade, do not directly fit on the factory vacuum pump for these vehicles.

Please note this is 034 Motorsports own complete uprated HPFP - a simple MK7 GTI/R etc pump cannot be used. This complete unit offers 68% more flow from the factory B9 HPFP.

Our kit directly solves this deficiency by including an OEM 2.0T MQB Vacuum Pump Kit. This kit can be retrofitted, enabling MQB 2.0T fuelling upgrades on Audi 2.0T MLB and Volkswagen 1.8T MQB vehicles. To further provide additional fuelling performance, our kit includes the 034Motorsport High Pressure Fuel Pump, unlocking a 68.6% over the factory 1.8T/2.0T MLB high pressure pump, providing a substantial increase in overall fuelling headroom.

Audi B9 2.0T MLB vehicles will be able to take advantage of the increased fuelling headroom with our Stage 1+ E85 software (coming soon!). Dynamic+ Tuning is required to install this High Pressure Fuel Pump & Vacuum Pump Upgrade Kit.

Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles come with a weak-performing, sealed HPFP unit from the factory and a vacuum pump that can’t accept High-Pressure Fuel Pump upgrades from their higher-performing MQB 2.0T siblings. We solve these deficiencies with the introduction of our High Pressure Fuel Pump Upgrade & Vacuum Pump Kit!

OEM Vacuum Pump Retrofit

• Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles come with their own vacuum pump that does not allow for more common MQB 2.0T fuelling options to be used. Luckily, the OEM MQB 2.0T vacuum pump can easily be retrofitted to these vehicles and allow for fuel pump upgrades like the 034Motorsport High Pressure Fuel Pump upgrade to be used. This ability opens the floodgates for large fuelling system upgrades that meet the demands of ethanol race fuel, pump gas, and upgraded turbocharger applications.

High Pressure Fuel Pump Upgrade

• Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles come with a weak-performing, sealed HPFP unit from the factory and often do provide enough headroom for tuners to push more power, namely with the addition of ethanol tuning. With the OEM Vacuum Pump retrofit, you can directly swap MQB 2.0T fuelling components like our 034Motorsport High Pressure Fuel Pump upgrade and receive all the benefits of increased fuelling capacity.
• Our High Pressure Fuel Pump Upgrade is designed and engineered to increase fuelling capacity for Audi 2.0T MLB and Volkswagen 1.8T MQB EA888 Gen 3 engines, delivering up to 68.6% more flow compared to stock 1.8T/2.0T MLB fuel pumps. This pump features the largest piston diameter on the market. It supports E85, optimized tunes, and turbo upgrades.
• Additionally, our upgrade is a new drop-in, high-flow TFSI HPFP manufactured and assembled entirely by an OEM fuel pump manufacturer. Unlike our competitors that take assembled OEM units, tear them down, and rebuild them with different, mismatched internals in their shops, 034Motorsport's Upgraded High-Pressure Fuel Pump is meticulously designed, manufactured, machined, and assembled in one location, ensuring that each component is perfectly prepped for synchronous use. Utilizing the same manufacturers that produce the OEM High-Pressure Fuel Pumps that are used by automakers themselves, 034Motorsport can guarantee the same level of quality and precision from OEM components, all while offering significant performance improvements to support high-horsepower applications.

• Audi B9 2.0T MLB vehicles will be able to take advantage of this increased fuelling headroom with our Stage 1+ E85 software (coming soon!).

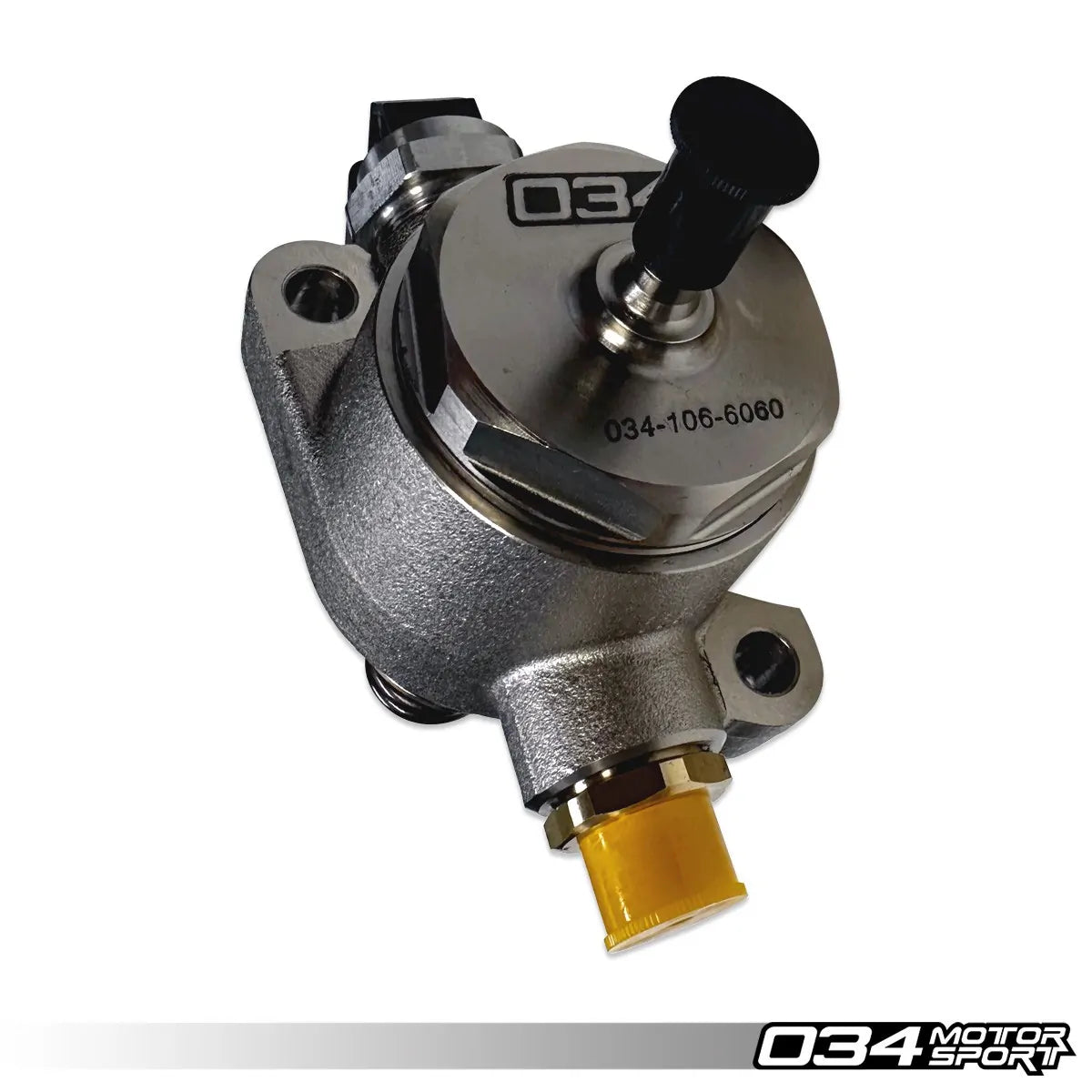

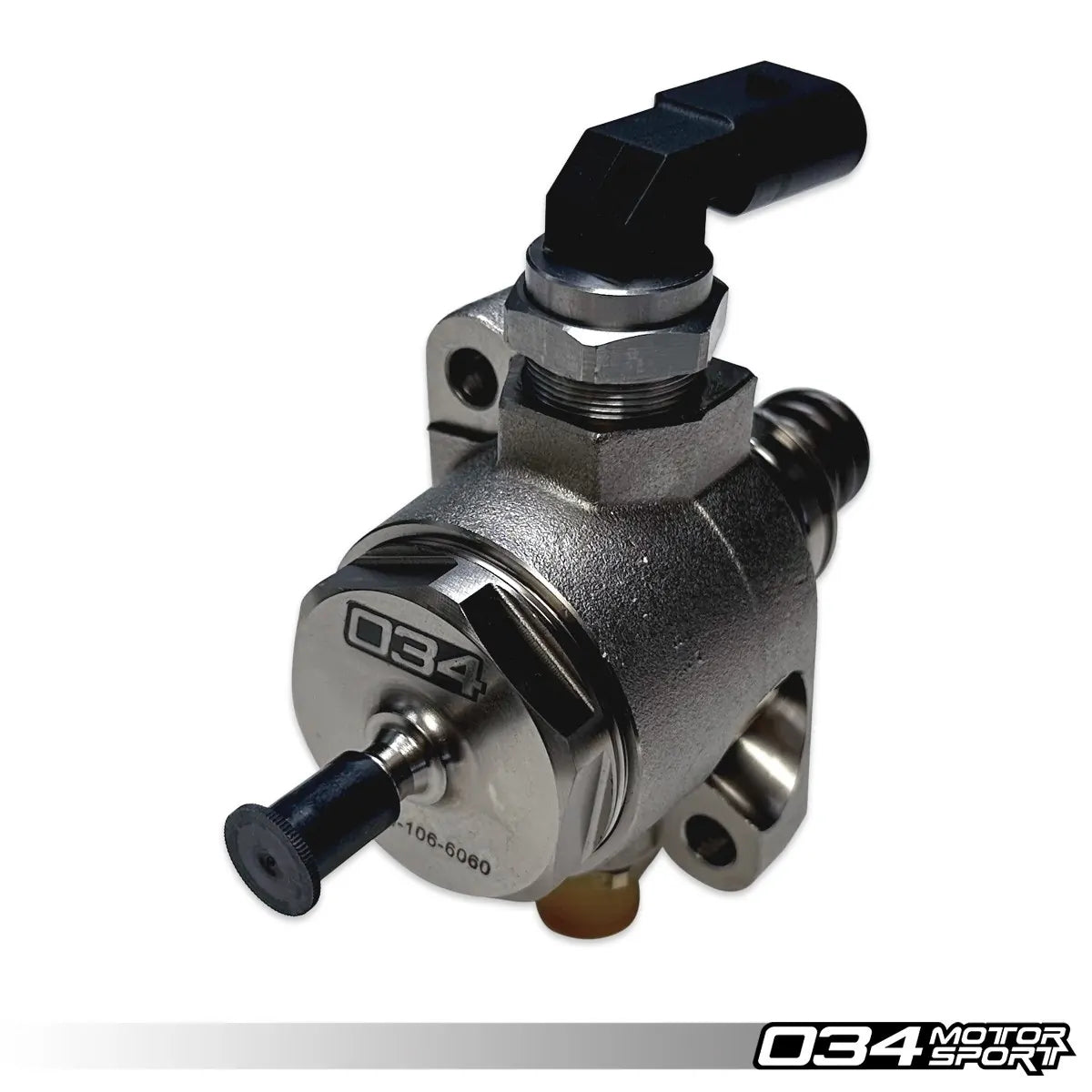

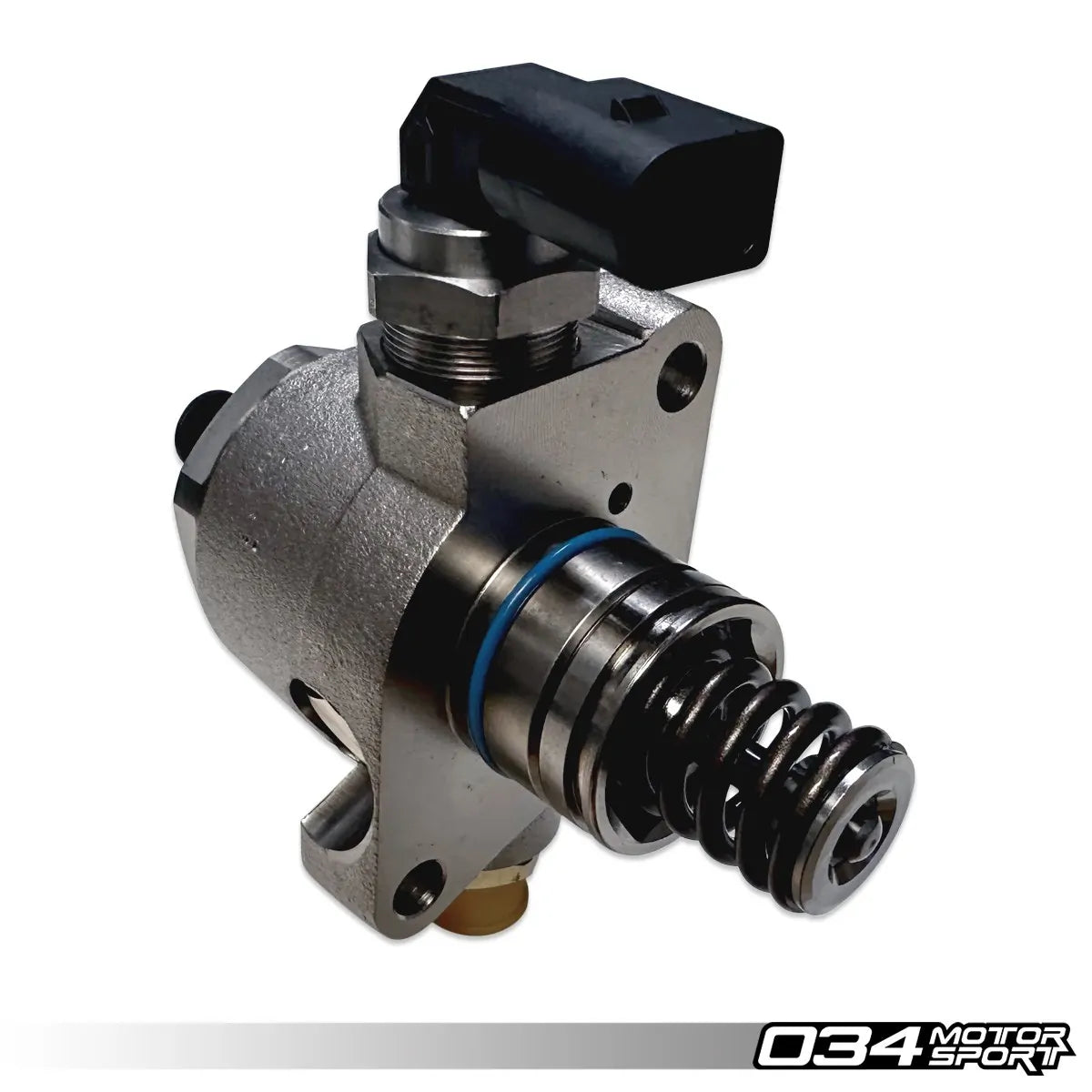

Fuel Pump Features:

• Flow Increase Over Factory High Pressure Fuel Pump:
  • 68.6% increase over stock 1.8T/2.0T MLB pump
• Increased Piston Diameter:
  • Stock 1.8T/2.0T MLB Pump: 9.00mm
  • 034Motorsport Pump: 11.70mm (Largest on the Market)
• Increased Stroke Volume:
  • Stock 1.8T/2.0T MLB Pump: 191mm³
  • 034Motorsport Pump: 322mm³
• Increased Fuel Pressure:
  • Stock Pump: 200 bar (2,900psi)
  • 034Motorsport Pump: Over 240 bar (3,480psi).
• Highest Flowing Pump On the Market
• Raises the Factory Fuelling Limits Present in the EA888 Gen3 Engines
• Increased flow to meet the demands of optimized tunes for E85 and/or turbo upgrades.
• Required for Most Stage 1 E85 Performance Software
• Complete Pump Assembly
• High-Precision Machined, Aerospace Tolerance, Fuel Pump Internals
• DLC Coated Piston and Cylinder for Reduced Friction and Increased Performance
• Relatively Easy Installation

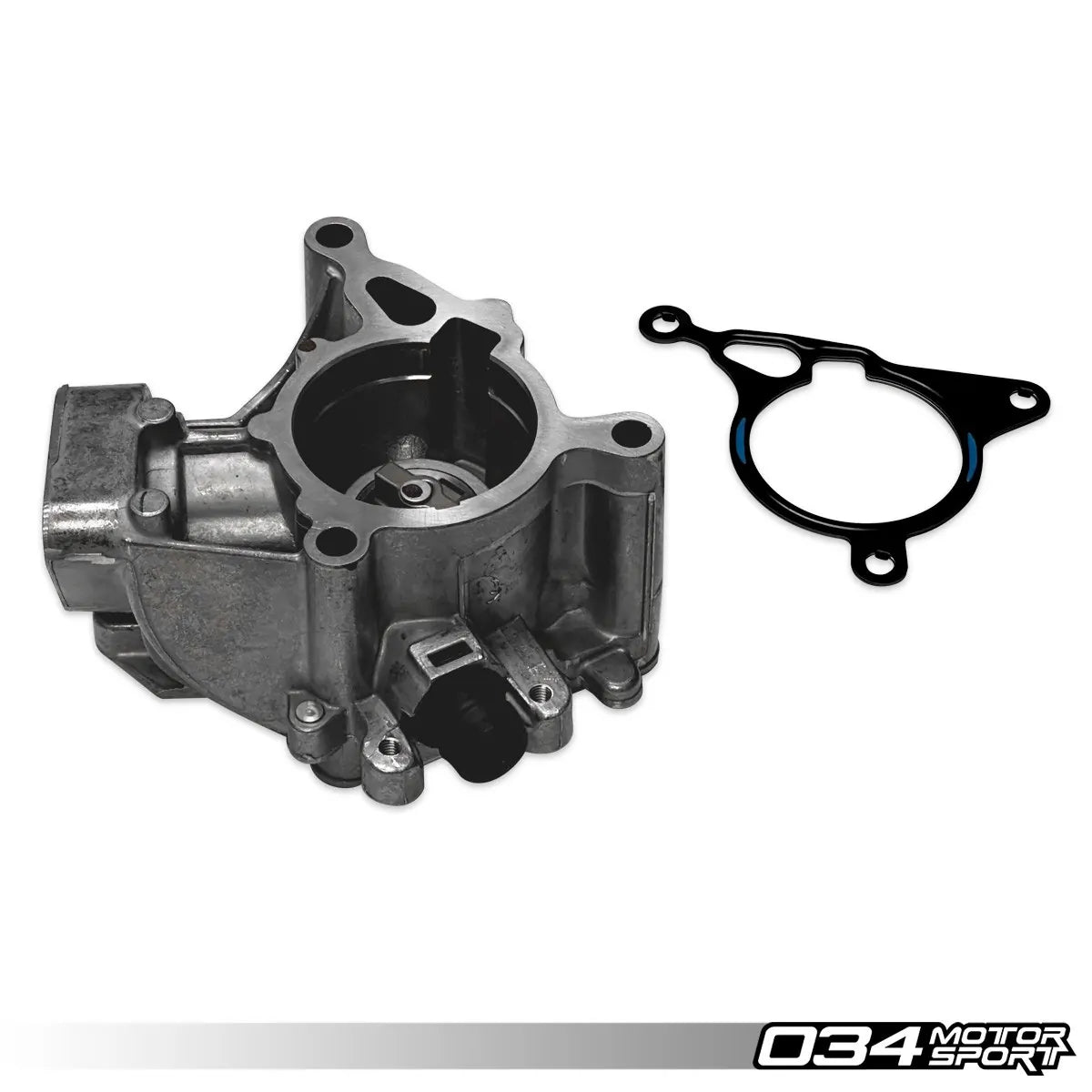

Vacuum Pump Features:

• OE Vacuum Pump from EA888.3 2.0T (transverse)
• Includes an OEM Replacement Gasket
• Genuine VW Parts
• Direct Replacement

Part Number Interchange:

• Audi B9 2.0T:
  • Fuel Pump PN: 06K 127 028 B
  • Vacuum pump PN: 06K 145 100 P
• VW 1.8T (EA888.3)
  • Fuel Pump PN: 06A 127 026 H
  • Vacuum Pump PN: 06K 145 100 BB

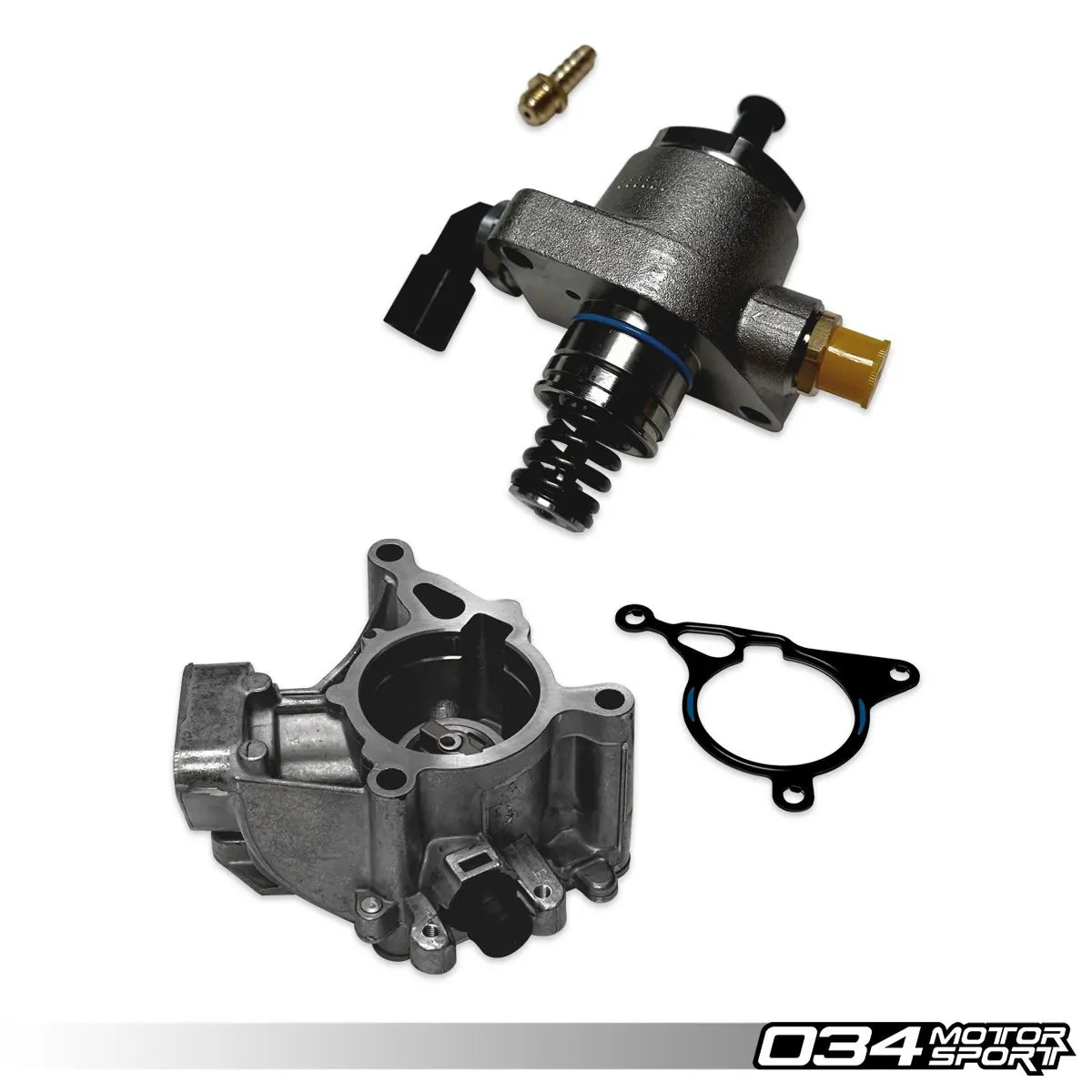

What’s Included:

• 1x) 034Motorsport High Pressure Fuel Pump (034-106-6060)
• 1x) OEM Vacuum Pump (06L 145 100 K or M)
• 1x) OEM Vacuum Pump Gasket (06H 103 121 J)
• 2x) VAG-N91128701 (M6x35)
• 3x) VAG-N10739401 (M6x70)
