034 Motorsport - Audi B9/9.5 RS4/RS5 Stage 2/3 ZF8 (TCU) transmission Tune

034 Motorsport - Audi B9/9.5 RS4/RS5 Stage 2/3 ZF8 (TCU) transmission Tune.

034 Motorsport Dynamic+ AL552 ZF8 stage 2 & 3 TCU tunes are now available for your Audi B9/9.5 RS4 & RS5! Dynamic+ tuning for the AL552 ZF8 safely and effectively optimises operation for stage 1, 2 & 3 Performance ECU Tunes. The result is a noticeable improvement in acceleration & driveability without sacrificing comfort or reliability.

Related product: Audi B9 RS4/5 ECU tuning

Please note we recommend stage 1 ECU and stage 2 TCU combination for the best bang for buck value.

Stage 2 ZF8 TCU tune

Stage 2 TCU tune: This is the BEST bang for buck modification after your ECU tune. It makes a huge difference to the driving experience and is very cost effective. The stage 1 TCU tune for this chassis is just a TCU patch to run full torque, it has only a few features, as such we recommend the full stage 2 TCU tune.

Stage 2 Dynamic+ TCU Tuning for the AL552 ZF8 safely and effectively optimize its operation for Performance ECU Software. The result is a noticeable improvement in acceleration, dropping your 0-60 time by 0.1 second and increasing shift speeds by up to 70%, without any sacrifice in comfort or reliability.

034Motorsport Stage 2 TCU Tuning further improves shifting performance and speed for casual and track driving in all driving modes. Dynamic+ Tuning also activates AMAX shifting to ensure the quickest and most efficient shifting strategies while launching your vehicle. These changes result in a significant improvement in acceleration, and lower 0-60 and ¼ mile times.

Features:

• Optimized Shift Points
  • In order to take advantage of the increased powerband from the turbochargers, Dynamic+ Tuning optimizes the shift points in all driving modes to maximize acceleration during wide open throttle scenarios.


• Improved Shift Speeds
  • To further enhance the acceleration of your Audi, the ZF8 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration. Shift times are now up to 70% faster!
  • Shift pressures are also increased in Sport Mode to maximize performance. In Sport Mode, you will notice less lazy shifts, more firm shifts, which ultimately results in quicker acceleration.


• Increased Launch Stall RPM
  • The launch stall RPM has been raised for a significant increase in force, allowing you to get off the line as fast as possible.


• Delay Time Between Launches Reduced
  • The delay time between launch control activations has been shortened. This is useful when drag racing to heat up tires using launch control, and re-activate quickly before launching down the drag strip!


• Improved Torque Management
  • As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.
  • 034Motorsport takes a holistic approach with its Dynamic+ Tuning and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

Stage 3 TCU tune:

The 034Motorsport Stage 3 Transmission Performance Tuning Software for the AL552 is designed to further improve the drivability and acceleration performance of your Stage 3 Dynamic+ Tuned Audi B9/B9.5 RS4 or RS5. Dynamic+ Stage 3 TCU Software is designed to be used with Dynamic+ Stage 3 ECU Software. 034Motorsport Stage 3 TCU Tuning further optimizes shift points under partial and full throttle to keep the TTE720 Turbochargers in their peak power band, and raises the redline to 7,200 for maximum performance with the larger turbocharger!

Dynamic+ end user flashing

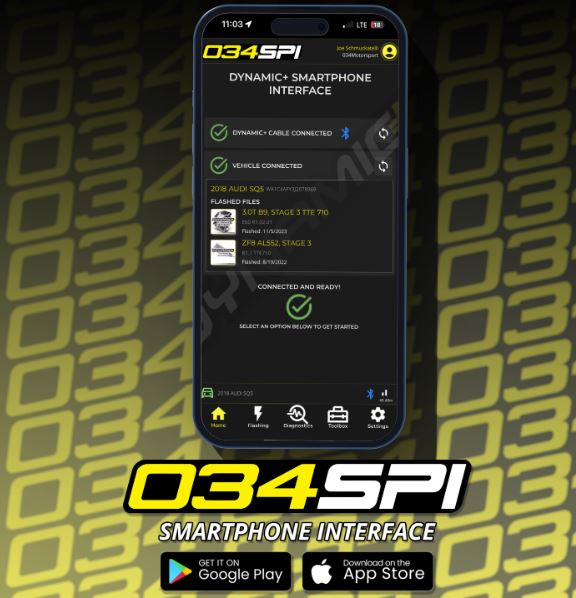

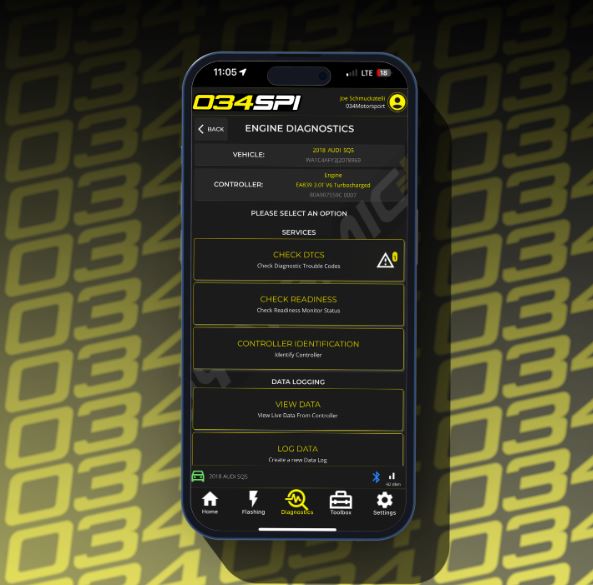

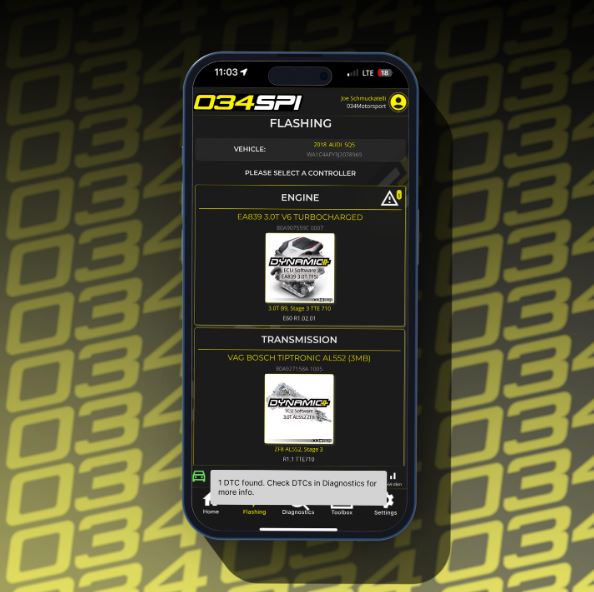

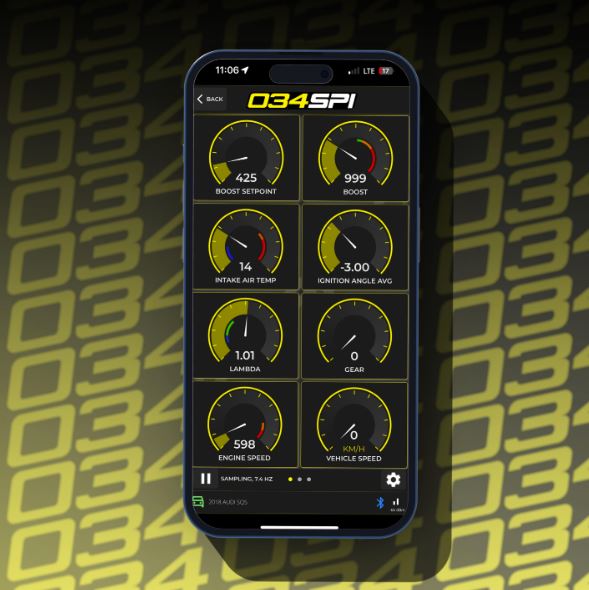

034 Motorsport offer flashing capabilities on multiple devices. Calibrate your vehicle with Windows PC, or the 034SPI Dynamic+ Smartphone Interface for MacOS, iOS mobile devices, and Android devices. Both programs have the same flashing capabilities, but 034SPI allows you to flash tunes wirelessly using the Dynamic+ Flashing Dongle and your mobile device, change fuel maps on the fly, configure live data displays, record and submit data logs to 034Motorsport's Tuning Support team, and utilize diagnostic support tools such as DTC/CEL code read/clear, and more!

STAGE 2 AL552 PERFORMANCE TCU SOFTWARE COMPARISON

Related product: Audi B9 RS4/5 ECU tuning

How to use the end user flash cable & software

• Receive welcome email (after purchase) with 034 software account and user guide
• Plug into OBD2 port and USB port on laptop & take read of stock ECU / TCU
• Send 034 stock file details from software (very easy)
• Plug back into OB2 port & USB and flash tune your ECU / TCU

Once you have taken the stock read of the ECU you can always flash your car back to stock at any time. You can also flash between stages.

The reading / flashing and software process is not complicated. Everything is straight forward and anyone who has the computer skills to send an email can do this process.

Initial read time - 5 minutes
First flash time - 10 minutes
Flash back to stock - 5 minutes
Flashing between files and stages - 5 minutes

What happens next?

• We will create a tuning order for you with head office
• We will post you the Dynamic+ tuning cable - Express post only
• Please wait and 034 tuning support will send you an account activation email. This contains instructions and links to download the tuning software.
• A user manual is available to download from every tuning product page
• You then proceed to take a read of your ECU/TCU and flash tune your vehicle
• 034 will provide direct support for you. You will be able to communicate with the software engineers
• Enjoy the transformation of your vehicle

Why purchase 034 Motorsport?

• Exceptional quality
• Passionate and devoted company
• Continual product development
• Excellent local and manufacturer support
• Extremely reasonable with pricing
• Huge selection of supporting products
• Superior software calibration
• Paypal, zip pay, afterpay, credit and debit
• Free express only shipping
• 30 day money back satisfaction guarantee

Fitment:
